From the manufacturer
Intel Wi-Fi 1.73G
Included Intel Wi-Fi / Bluetooth solution uses smart MU-MIMO technology, delivering AC speeds up to 1.73Gbps.

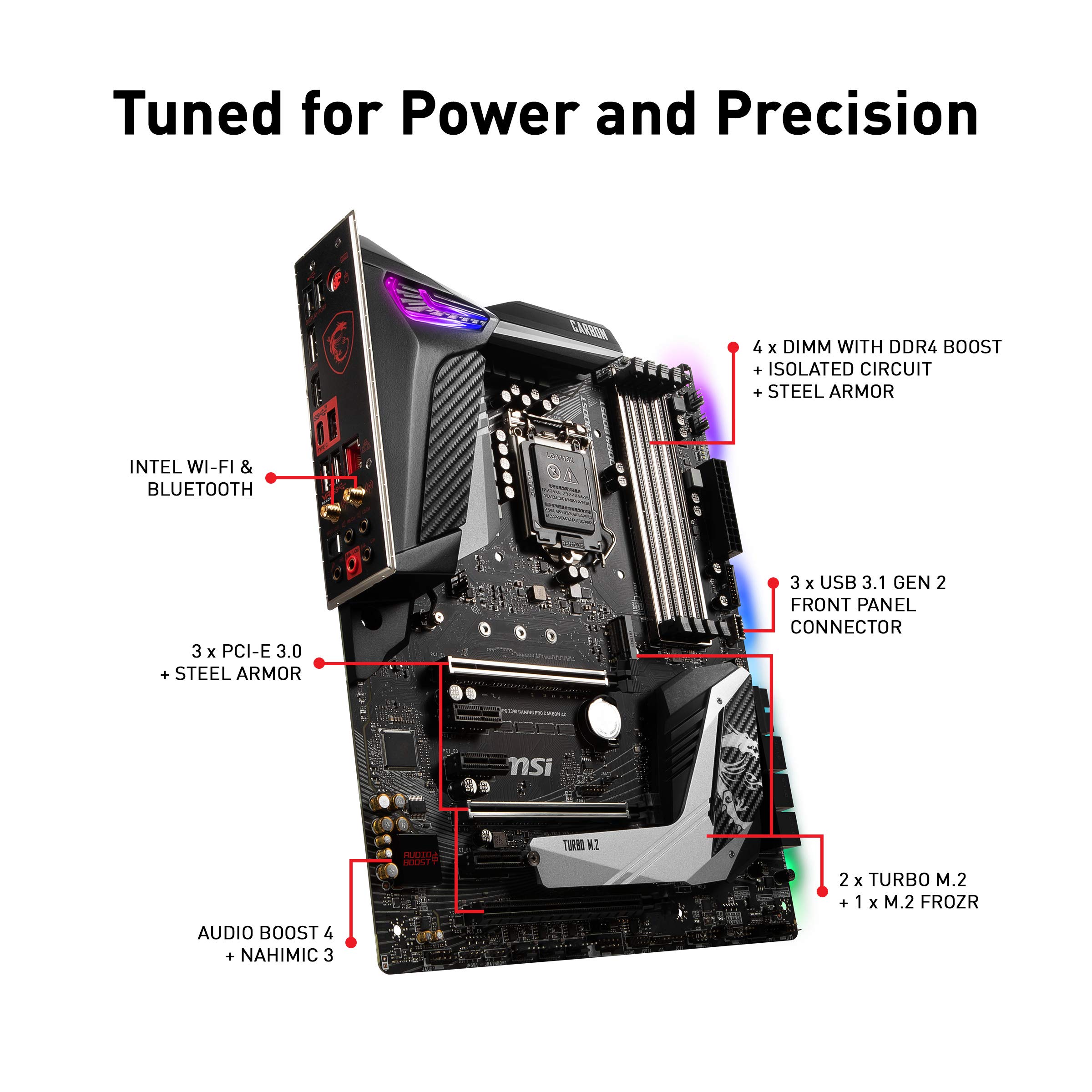

M.2 Shield Frozr
Fast SSDs can slow down when they get too hot. M.2 Shield Frozr extends the motherboard’s heatsink over an M.2 SSD to prevent thermal throttling and sustain maximum drive performance.

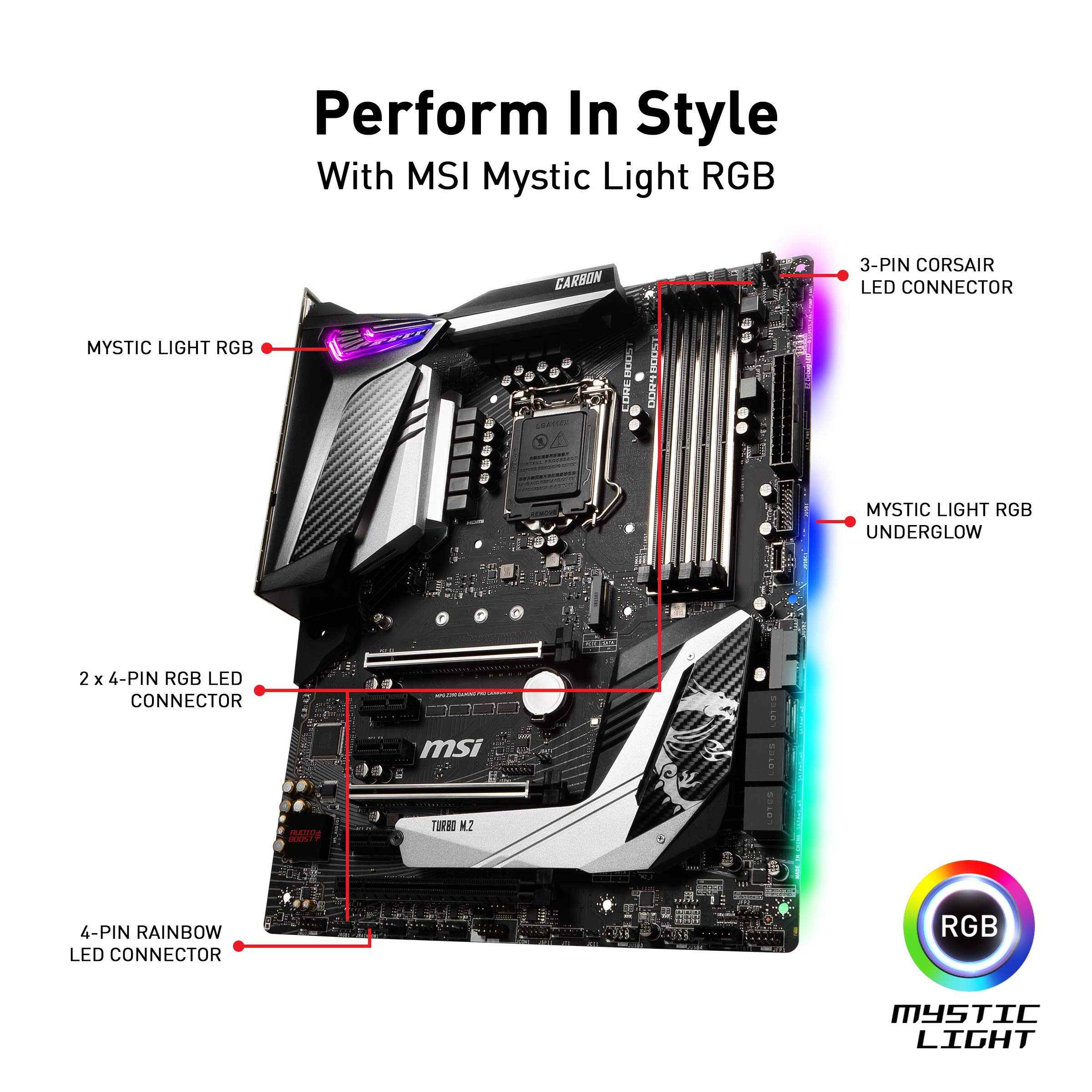

Mystic Light
Personalize your PC with 16.8 million colors and 29 effects through with the Mystic Light App or a mobile device.
Audio Boost 4 with Nahimic 3
Isolated audio circuitry, a high quality ALC1220 audio processor, dedicated amplifier, and high quality audio capacitors delivery immersive sound.

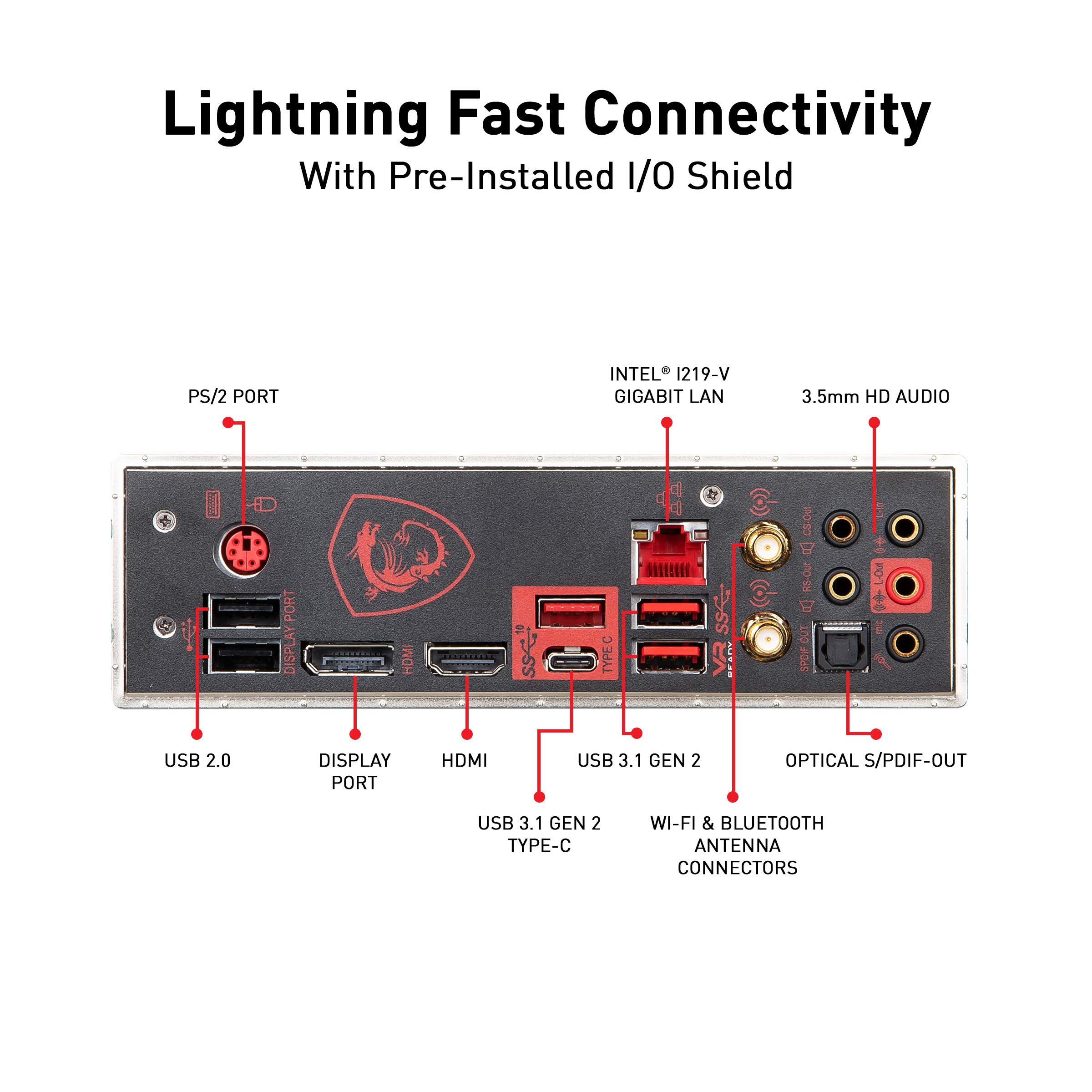

Pre-installed I/O Shielding

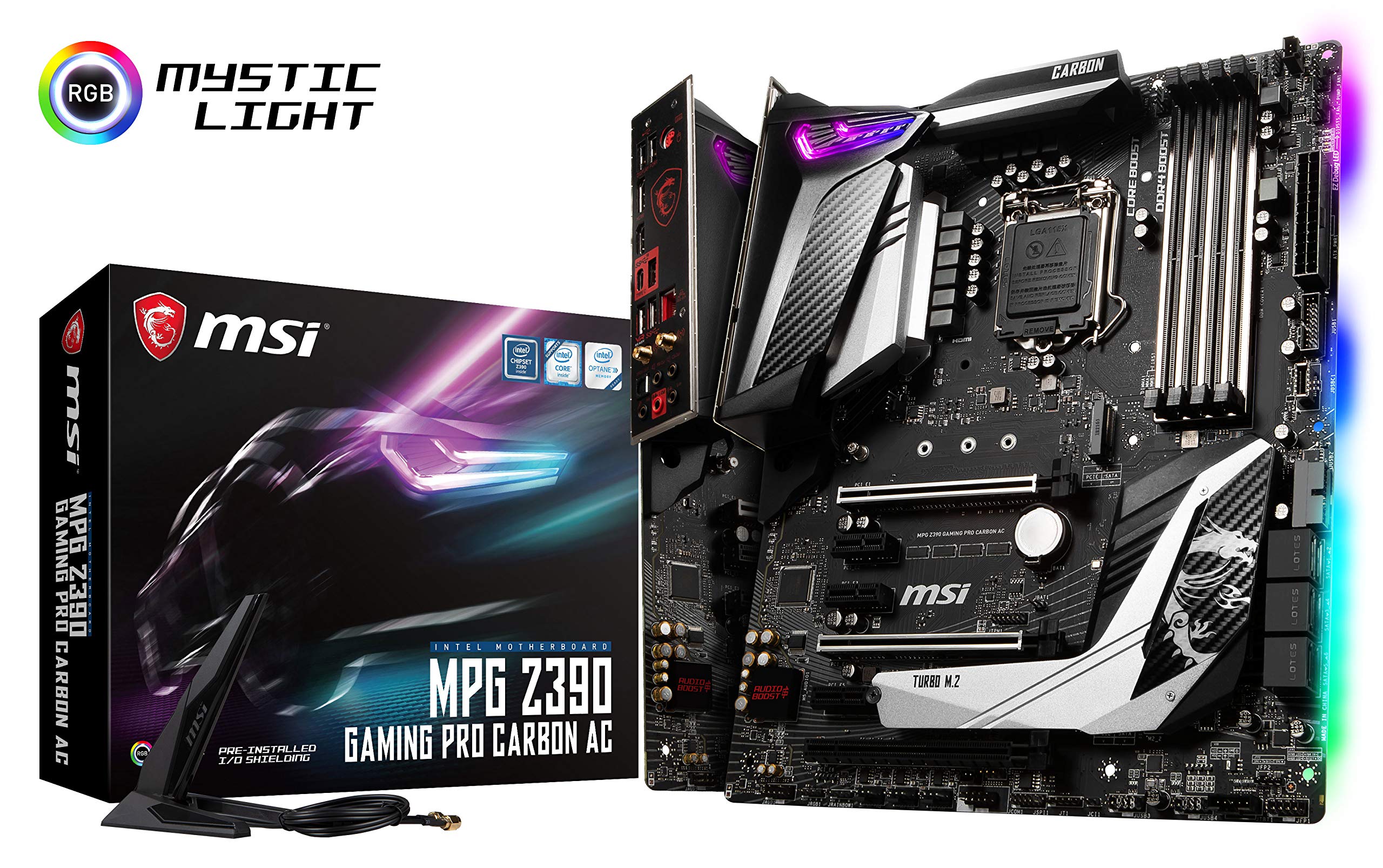

Make the assembly process easier and safer with MPG Z390 Gaming Pro Carbon AC. The pre-installed rear I/O is grounded and protects the I/O ports from potential electrostatic discharge damage from the external environment.
Become an MSI Dragon Fan and Get Rewarded
MSI is keen to hear from you! Share your product experience and get rewarded. Your feedback is appreciated. Become an MSI Dragon Fan today!
Visit MSI US website for more information on rewards.
Compare Items
MEG Z390 Godlike
|
MEG Z390 Ace
|
Z390 Gaming Pro Carbon AC
|
Z390 Gaming Pro Carbon
|
MPG Z390 Game Edge AC
|
MAG Z390 TOMAHAWK
|
|
|
Intel 9th/8th Gen CPU Support
|
Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron |
|
Chipset
|
Intel Z390 Chipset | Intel Z390 Chipset | Intel Z390 Chipset | Intel Z390 Chipset | Intel Z390 Chipset | Intel Z390 Chipset |
|
Graphics Interface
|
4x PCIe 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots |
|
Display Interface
|
— | — | DisplayPort / HDMI | DisplayPort / HDMI | DisplayPort / HDMI | DisplayPort / HDMI |
|
Memory Support
|
4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 |
|
Expansion Slots
|
1 x PCIe x 1 slots | 3 x PCIe 3.0 x 1 slots | 3 x PCIe 3.0 x 1 slots | 3 x PCIe 3.0 x 1 slots | 3 x PCIe 3.0 x 1 slots | 2 x PCI-E 3.0 x1 slots |
|
M.2 / SATA
|
3x M.2 32Gb/s; 6x SATA 6Gb/s | 3x M.2 32Gb/s; 6x SATA 6Gb/s | 2 x M.2 32Gb/s; 6 x SATA 6Gb/s | 2 x M.2 32Gb/s; 6 x SATA 6Gb/s | 2 x M.2 32Gb/s; 6 x SATA 6Gb/s | 2 x M.2 32Gb/s; 6 x SATA 6Gb/s |
|
SATA RAID
|
RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 |
|
LAN
|
2 x Killer E2500 Gigabit LAN | Killer E2500 Gigabit LAN | Intel I219-V Gigabit LAN | Intel I219-V Gigabit LAN | Intel I219-V Gigabit LAN | Intel I219-V Gigabit LAN |
|
Audio
|
8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio |
|
Wi-Fi / BT
|
Killer Wi-Fi AC 1550 | Intel Wireless-AC 9560 | Intel Wireless-AC 9560 | — | Intel Wireless-AC 9462 | — |
|
Form Factor
|
E-ATX | ATX | ATX | ATX | ATX | ATX |
