From the manufacturer
PERFECT BALANCE
MPG X570 GAMING EDGE WIFI
Play dangerously with MPG X570 GAMING EDGE WIFI and strike fear into the hearts of every foe. Sharpen any build with an advanced gaming motherboard ready for AMD Ryzen AM4 processors. Get the edge in combat with Wi-Fi, Extended Heatsink, and Twin Lightning M.2 with M.2 Shield Frozr.
Built for high-performance gaming.
- ATX form factor
- Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics Desktop Processors for AM4
- On-board Wi-Fi 5 (802.11ac) with MU-MIMO support
- AUDIO BOOST 4 technology with NAHIMIC 3 software enhancement for immersive experiences.
- FROZR Heatsink with patented fan design – Propeller Blade Technology and double ball bearings

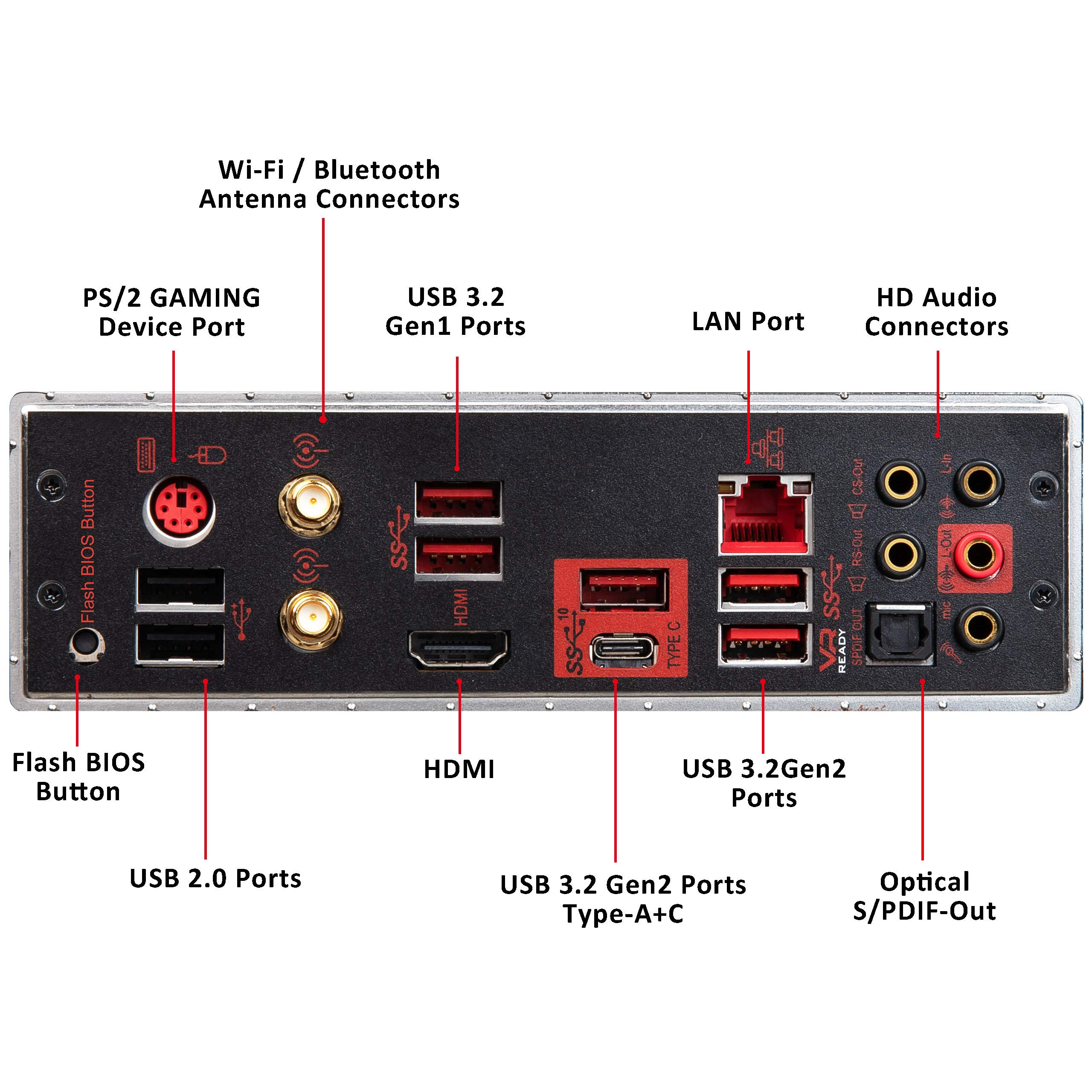

- Pre-Installed IO Shielding is grounded and protects the IO ports from potential electrostatic discharge damage from the external environment.
Features
|
|
|
|
|---|---|---|
WI-FI AC & BLUETOOTHConnect to a high-speed wireless network with the onboard Intel Wi-Fi / Bluetooth solution delivering speeds up to 433Mbps. |

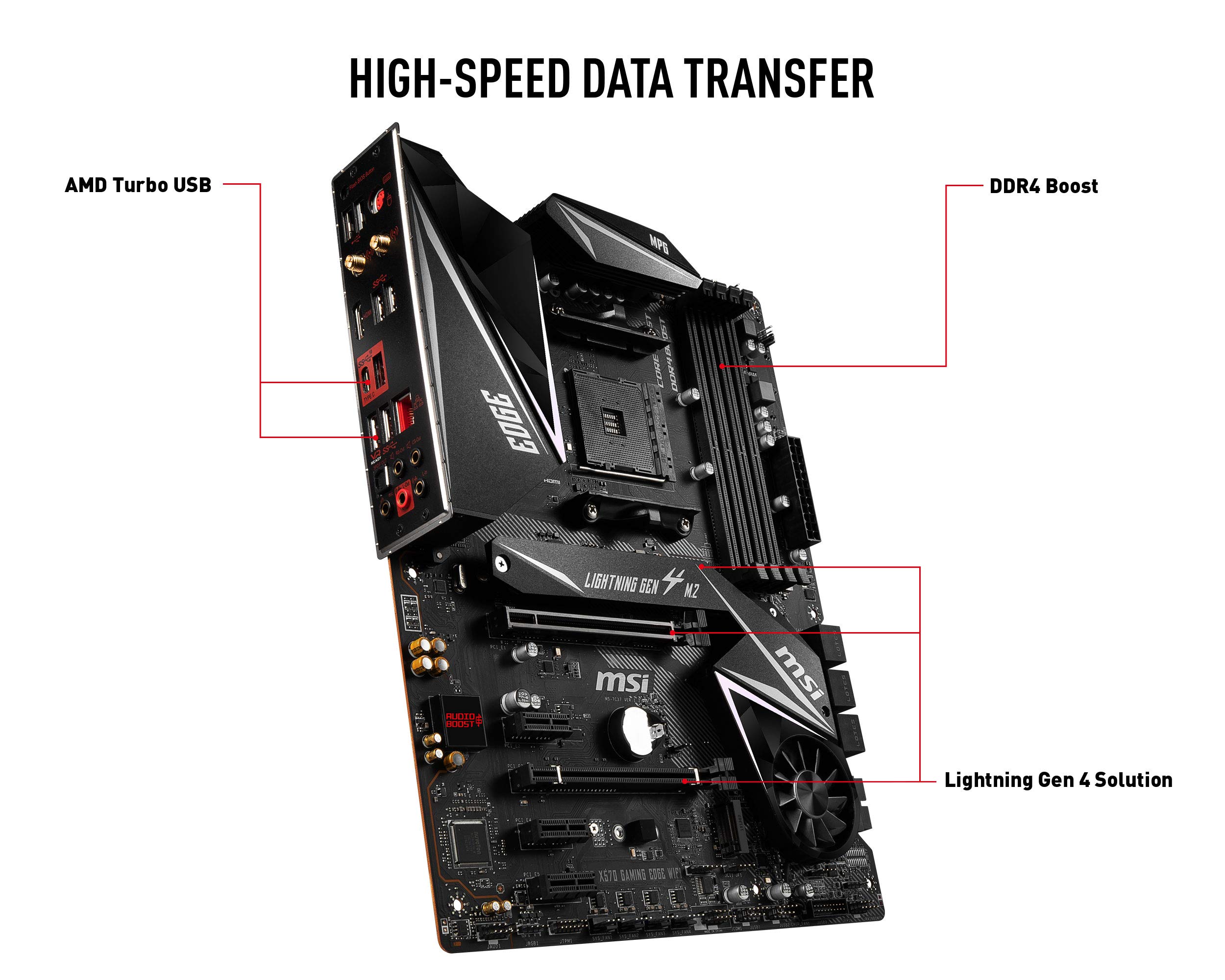

LIGHTNING GEN 4 SOLUTIONStrike fast with MSI Lightning Gen 4 PCI-E. Attach ultra-fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. |

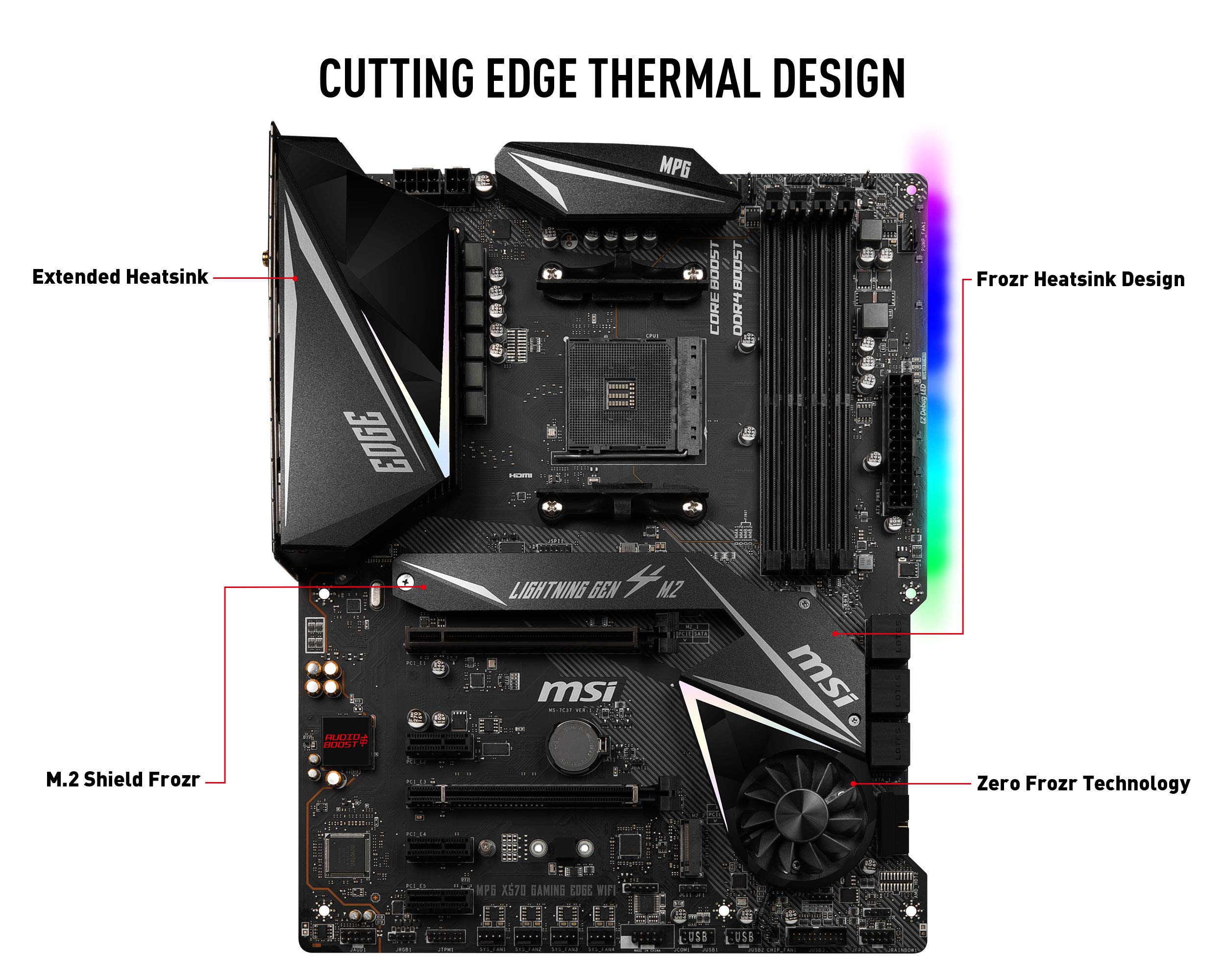

FROZR HEATSINK DESIGNWhen it comes to high performance motherboards, controlling heat is essential. The X570 chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth. |
Features
|
|
|
|
|---|---|---|

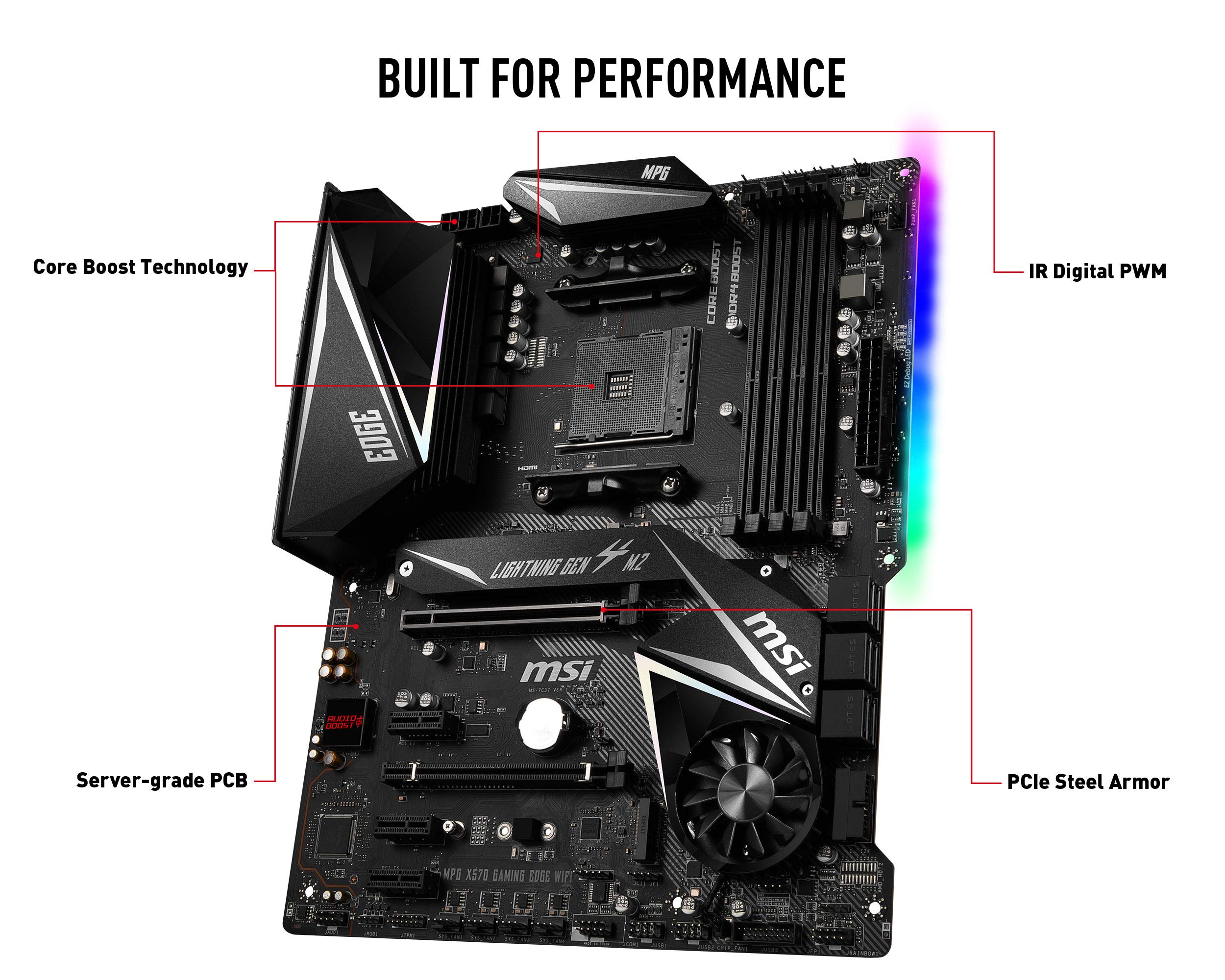

CORE BOOSTCore Boost is the latest advancement of MSI’s motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimized circuit design results in a highly efficient power system capable of precise current output to the CPU. |
MYSTIC LIGHT RGBPersonalize your PC with 16.8 million colors and 29 effects through the Mystic Light APP. |
UNMATCHED MEMORY PERFORMANCEMSI takes memory stability and performance to the extreme. We’ve designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers. |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| MEG X570 ACE | MEG X570 UNIFY | MPG X570 GAMING PRO CARBON WIFI | MPG X570 GAMING EDGE WIFI | MPG X570 GAMING PLUS | X570-A PRO | |
| CPU Support | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 socket |
| Memory | 4 x DIMM; dual channel DDR4; Total max. 128GB; 4533+ MHz | 4 x DIMM; dual channel DDR4; Total max. 128GB; 4600+ MHz | 4 x DIMM; dual channel DDR4; Total max. 128GB; 4400+ MHz | 4 x DIMM; dual channel DDR4; Total max. 128GB; 4400+ MHz | 4 x DIMM; dual channel DDR4; Total max. 128GB; 4400+ MHz | 4 x DIMM; dual channel DDR4; Total max. 128GB; 4400+ MHz |
| PCIe x16 Slots | 3 x PCIe 4.0 x16 slots | 3 x PCIe 4.0 x16 slots | 2 x PCIe 4.0 x16 slots | 2 x PCIe 4.0 x16 slots | 2 x PCIe 4.0 x16 slots | 2 x PCIe 4.0 x16 slots |
| Display | N/A | N/A | HDMI (requires processor graphics) | HDMI (requires processor graphics) | HDMI (requires processor graphics) | HDMI (requires processor graphics) |
| Audio | Audio Boost HD | Audio Boost HD | Audio Boost 4 | Audio Boost 4 | Audio Boost 4 | Audio Boost 4 |
| 32GB/s M.2 | 3 x M.2 connectors | 3 x M.2 connectors | 2 x M.2 connectors | 2 x M.2 connectors | 2 x M.2 connectors | 2 x M.2 connectors |
| Ethernet LAN | 1x REALTEK 2.5G LAN & 1x INTEL Gigabit LAN | 1x REALTEK 2.5G LAN | 1x INTEL Gigabit LAN | 1x Realtek Gigabit LAN | 1x Realtek Gigabit LAN | 1x Realtek Gigabit LAN |
| Wireless | 2×2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac/ax | 2×2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac/ax | 2×2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac/ax | 1×1 Wi-Fi 802.11 a/b/g/n/ac | N/A | N/A |
| Mystic Light | 16.8 million colors | N/A | 16.8 million colors | 16.8 million colors | Onboard Red LED, extendable headers 16.8 million colors | N/A |
| Form Factor | ATX | ATX | ATX | ATX | ATX | ATX |
