From the manufacturer

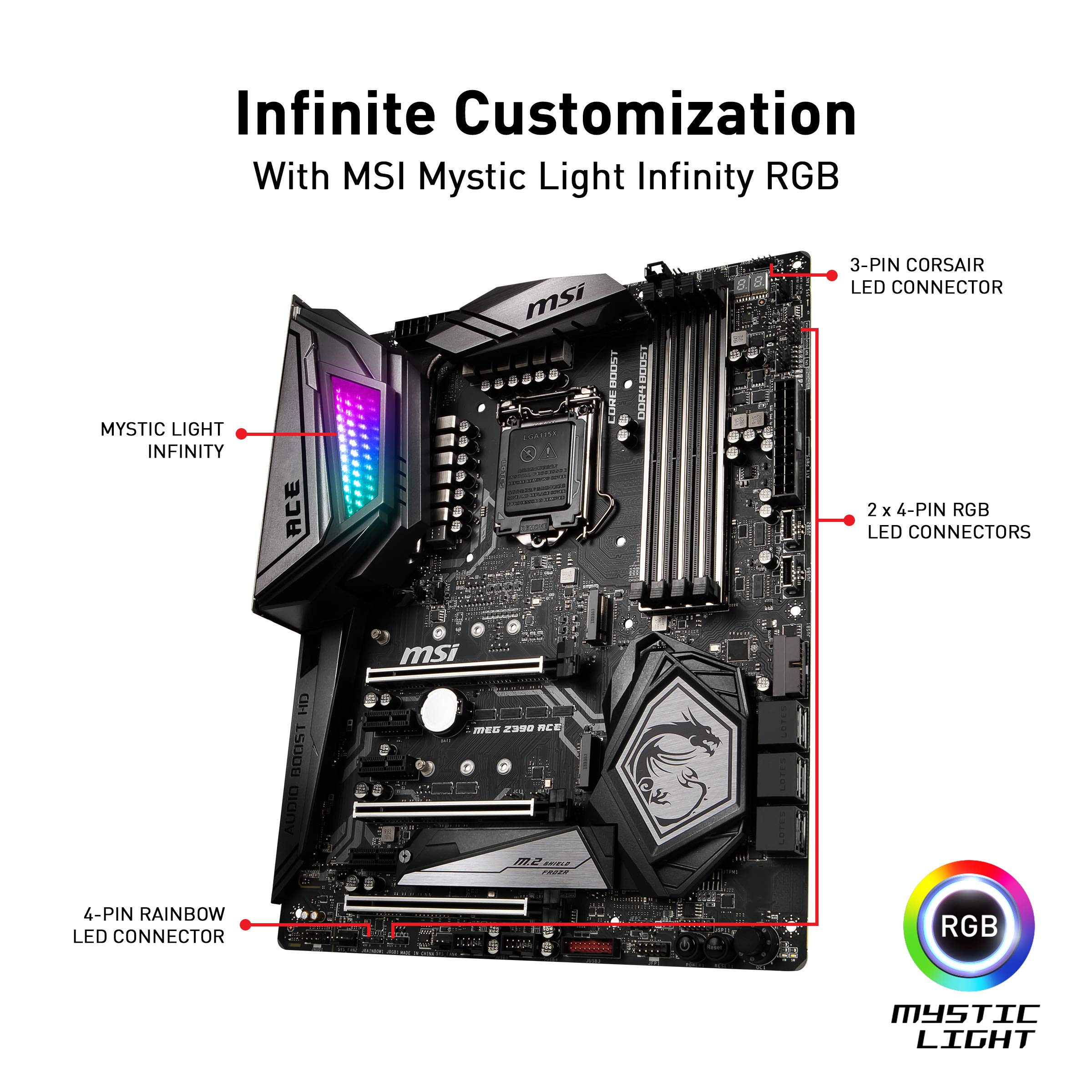

Mystic Light Infinity
Mystic Light Infinity brings together colorful lighting and an infinity mirror for deceptively endless light effects. Personalize your PC with 16.8 million colors and 29 effects with the Mystic Light App.

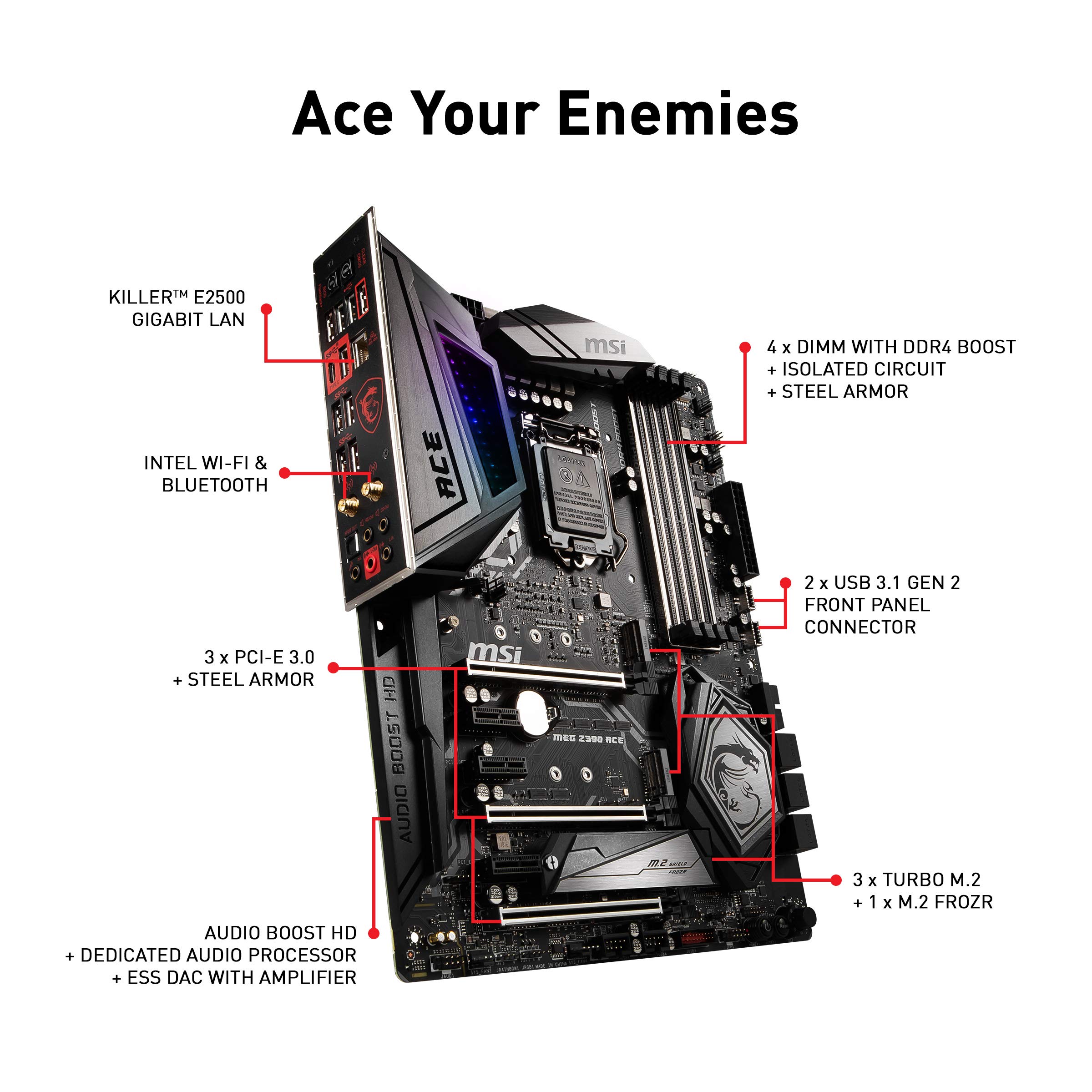

Triple Turbo M.2 with M.2 Shield Frozr
Triple Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s. M.2 Shield Frozr extends the motherboard’s heatsink over M.2 SSDs to prevent thermal throttling and sustain maximum drive performance.
Intel Wi-Fi AC & Bluetooth
Use your LAN port for online gaming while using WiFi for other online applications.
Audio Boost HD with Nahimic 3
High definition dedicated ALC1220 audio processor, ESS audio DAC with amplifier, quality audio capacitors, golden audio jacks with S/PDIF.

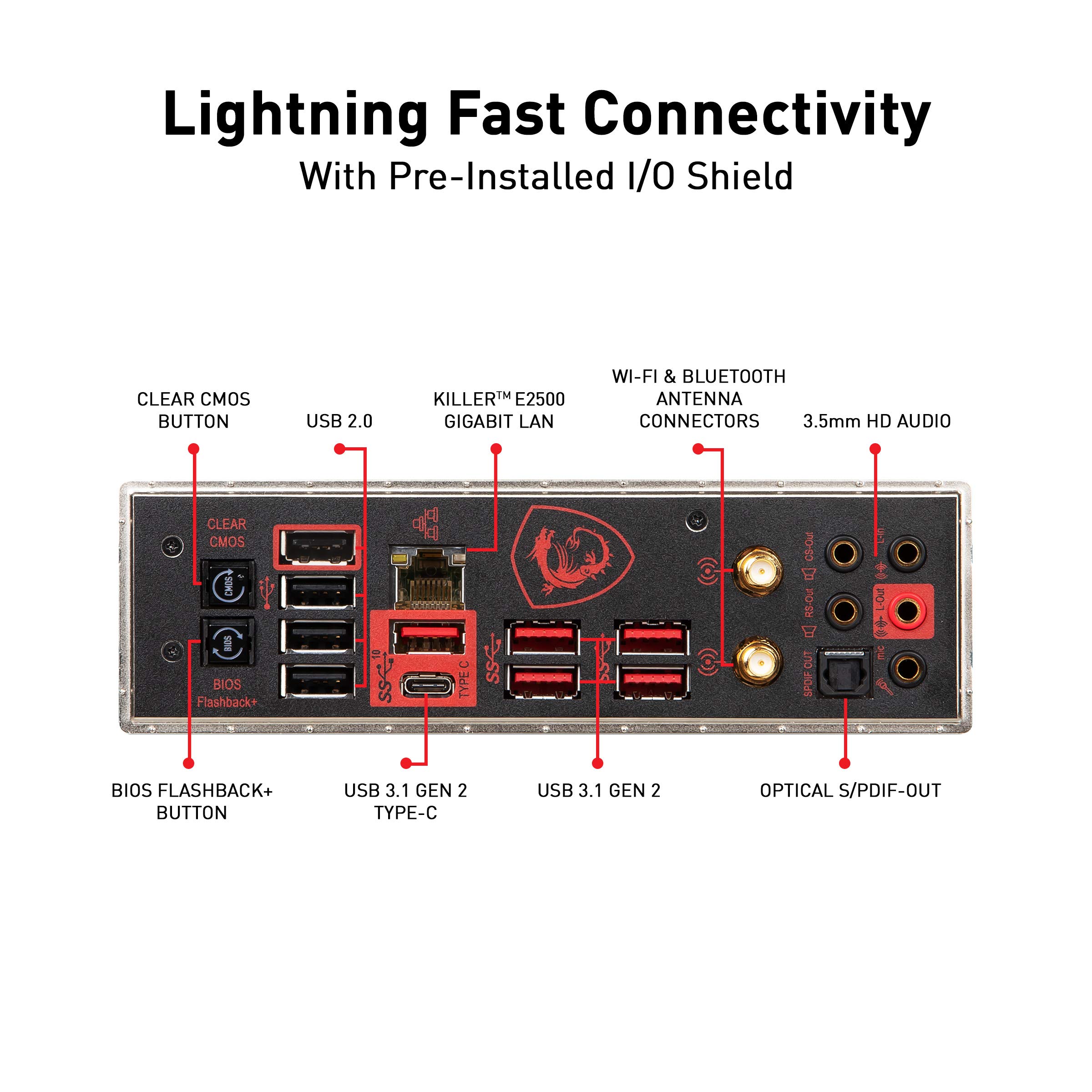

Pre-installed I/O Shielding

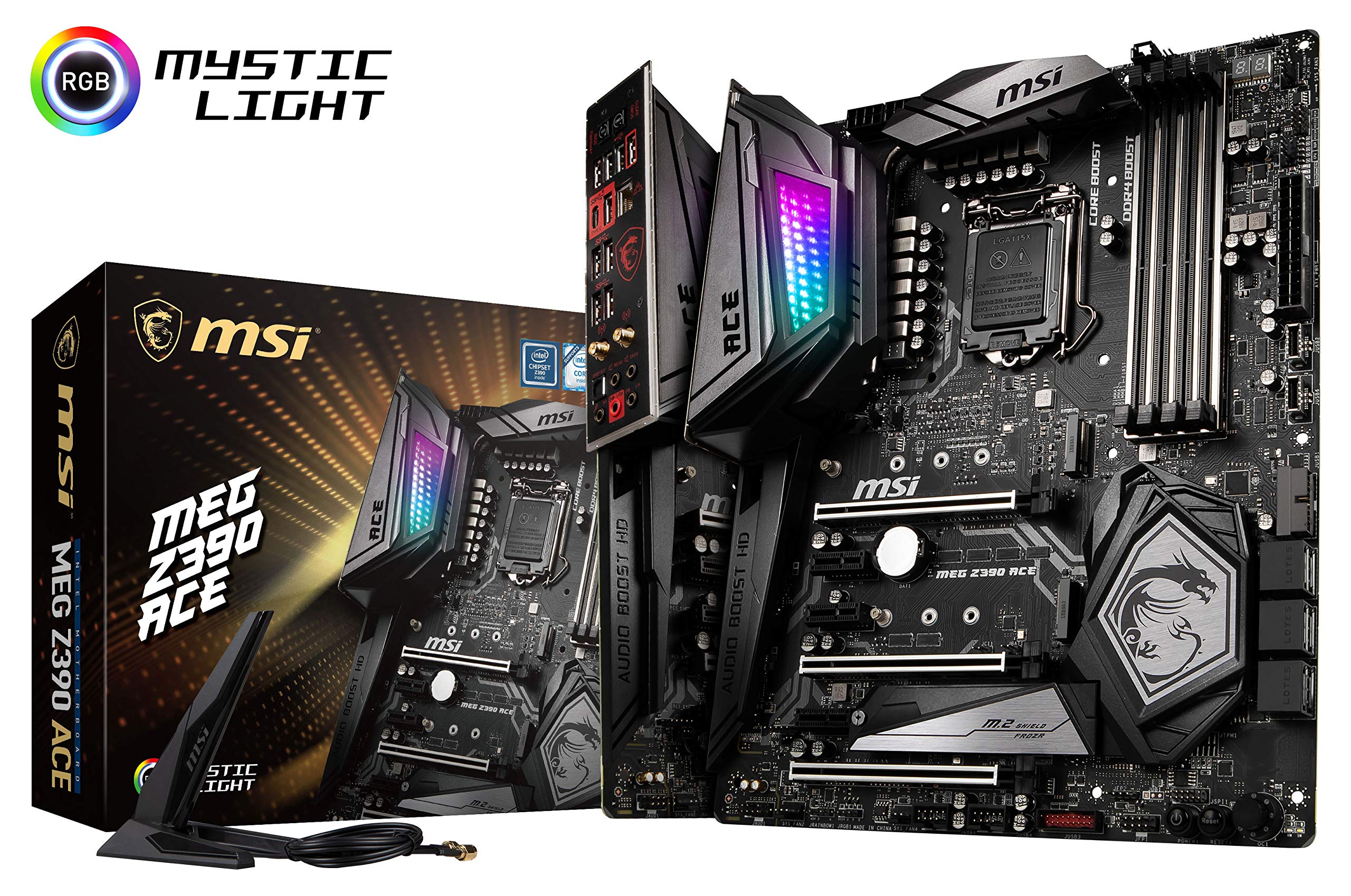

Make the assembly process easier and safer with MEG Z390 ACE. The pre-installed rear I/O is grounded and protects the I/O ports from potential electrostatic discharge damage from the external environment.
Become an MSI Dragon Fan and Get Rewarded
MSI is keen to hear from you! Share your product experience and get rewarded. Your feedback is appreciated. Become an MSI Dragon Fan today!
Compare Items
MEG Z390 GODLIKE
|
MEG Z390 ACE
|
Z390 GAMING PRO CARBON AC
|
Z390 GAMING PRO CARBON
|
MPG Z390 GAME EDGE AC
|
MAG Z390 TOMAHAWK
|
|
|
Intel 9th/8th Gen CPU Support
|
Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron | Intel Core/Pentium/Celeron |
|
Chipset
|
Intel Z390 Chipset | Intel Z390 Chipset | Intel Z390 Chipset | Intel Z390 Chipset | Intel Z390 Chipset | Intel Z390 Chipset |
|
Graphics Interface
|
4x PCIe 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots | 3 x PCI-E 3.0 x 16 slots |
|
Display Interface
|
— | — | DisplayPort / HDMI | DisplayPort / HDMI | DisplayPort / HDMI | DisplayPort / HDMI |
|
Memory Support
|
4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 | 4 DIMMs, Dual Channel DDR4 |
|
Expansion Slots
|
1 x PCIe x 1 slots | 3 x PCIe 3.0 x 1 slots | 3 x PCIe 3.0 x1 slots | 3 x PCIe 3.0 x 1 slots | 3 x PCIe 3.0 x 1 slots | 2 x PCI-E 3.0 x1 slots |
|
M.2 / SATA
|
3x M.2 32Gb/s; 6x SATA 6Gb/s | 3 x M.2 32Gb/s; 6 x SATA 6Gb/s | 2 x M.2 32Gb/s; 6 x SATA 6Gb/s | 2 x M.2 32Gb/s; 6 x SATA 6Gb/s | 2 x M.2 32Gb/s; 6 x SATA 6Gb/s | 2 x M.2 32Gb/s; 6 x SATA 6Gb/s |
|
SATA RAID
|
RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 | RAID 0, 1, 5, 10; SATA1-SATA6 |
|
LAN
|
2 x Killer E2500 Gigabit LAN | Killer E2500 Gigabit LAN | Intel I219-V Gigabit LAN | Intel I219-V Gigabit LAN | Intel I219-V Gigabit LAN | Intel I219-V Gigabit LAN |
|
Audio
|
8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio | 8-Channel (7.1) HD Audio |
|
Wi-Fi / BT
|
Killer Wi-Fi AC 1550 | Intel Wireless-AC 9560 | Intel Wireless-AC 9560 | — | Intel Wireless-AC 9462 | — |
|
Form Factor
|
E-ATX | ATX | ATX | ATX | ATX | ATX |
