From the manufacturer
Upgrade Your Life
Founded in 1986, GIGABYTE has expanded its product portfolio to include motherboards, graphics cards, PC Components, PC peripherals, laptops, and desktop PCs to serve each facet of the digital life in the home and office. Everyday GIGABYTE aims to “Upgrade Your Life” with innovative technology, exceptional quality, and unmatched customer service.

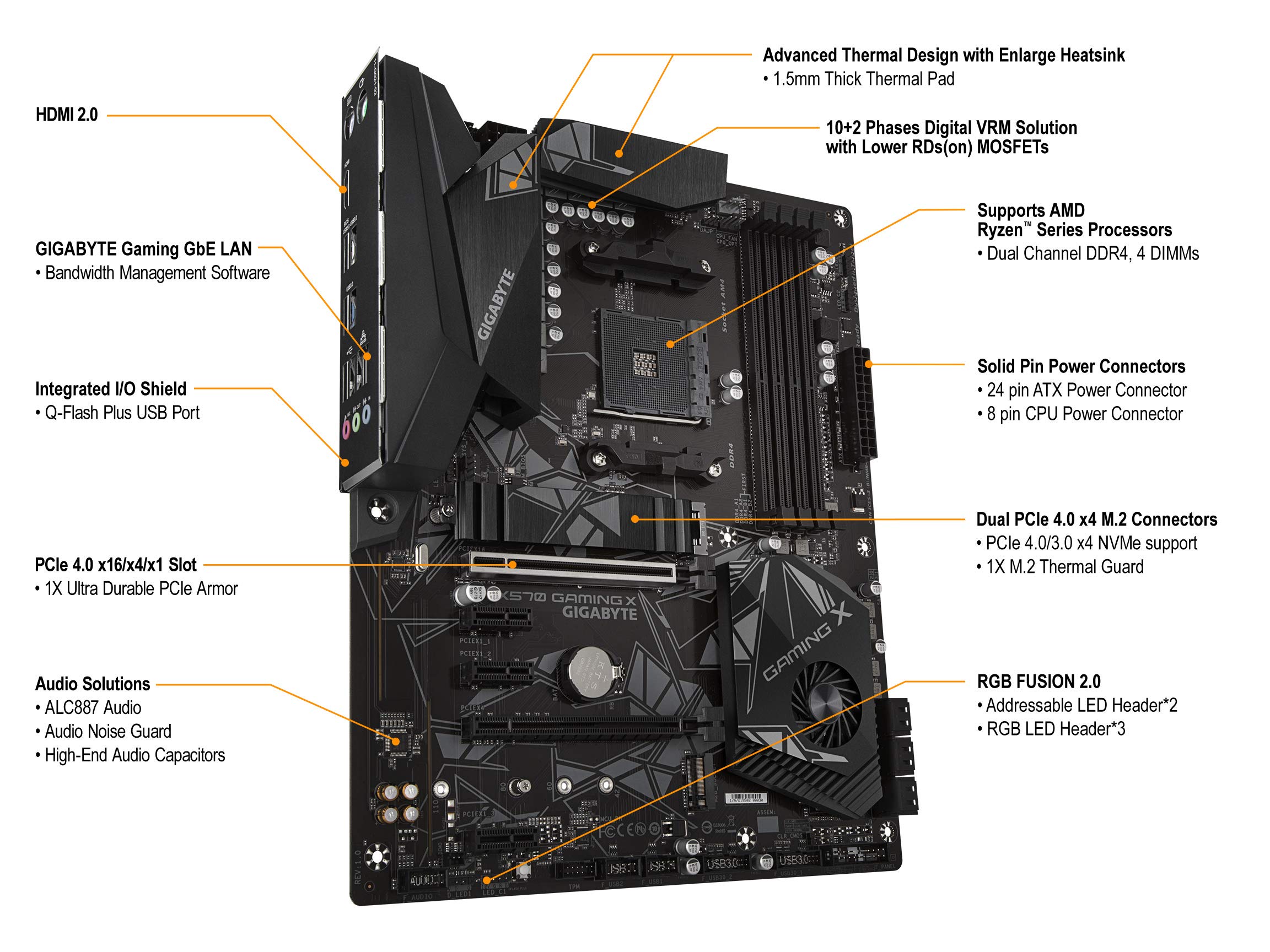

X570 GAMING X
GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet and the latest standard of WIFI design – to fulfill users’ performance, audio, and data transfer needs.
The advanced power and thermal design enables users to unleash the performance on AMD Ryzen 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
- Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics Processors
- True 12 Phase Digital VRM
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guard
- RGB FUSION with Multi-Zone Addressable LED Light Show Design
- Realtek 8118 LAN
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 5 – Hybrid Fan Headers with FAN STOP and Noise Detection
Features
|
|
|
|
|---|---|---|
True 14 Phase Digital DrMOS VRMThe X570 Gaming X use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest AMD Ryzen 3000-series CPUs by offering incredible precision in delivering power to the motherboard’s most power- hungry and energy-sensitive components. |
Advanced Thermal DesignEnlarged MOSFET heatsinks improve thermal performance by increasing heat dissipation surface area and maintaining stylish aesthetic. Improved thickness of the 1.5mm thermal pads give superior heat dissipation of MOSFETs. |
DDR4 XMP SupportGIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard. |
Features
|
|
|
|
|---|---|---|
Ultra Durable PCIe ArmorThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. |
Easy BIOS UpdatesWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! |

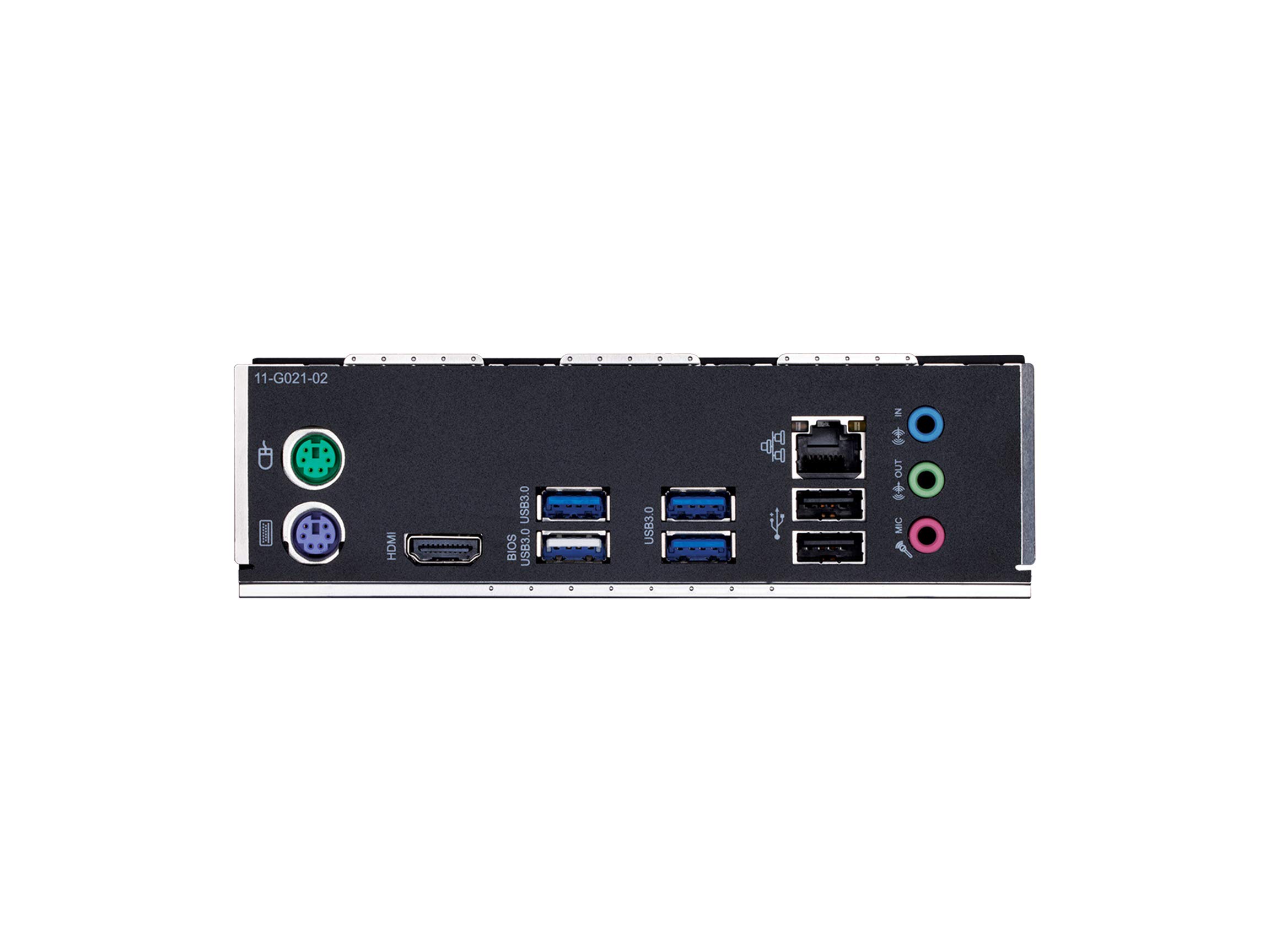

Integrated I/O ShieldEvery motherboard in the GIGABYTE/AORUS X570 motherboard lineup is equipped with integrated I/O shields to make PC building more seamless. |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| X570 AORUS XTREME | X570 AORUS MASTER | X570 AORUS ULTRA | X570 AORUS PRO WIFI | X570 AORUS ELITE | X570 I AORUS PRO WIFI | |
| CPU Support | AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics Processors | AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics Processors | AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics Processors | AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics Processors | AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics Processors | AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics Processors |
| CPU Power Phase | Direct 16 Phase Digital 70A (14+2) | Direct 14 Phase Digital 50A (12+2) | True 14 Phase Digital PowIRstage (12+2) | True 14 Phase Digital PowIRstage (12+2) | True 14 Phase Digital DrMOS (12+2) | Direct 8 Phase Digital 70A (6+2) |
| Memory Type | Dual-Channel DDR4 | Dual-Channel DDR4 | Dual-Channel DDR4 | Dual-Channel DDR4 | Dual-Channel DDR4 | Dual-Channel DDR4 |
| Memory DIMMs | 4*DIMMs | 4*DIMMs | 4*DIMMs | 4*DIMMs | 4*DIMMs | 2*DIMMs |
| Graphics Interface | 1x PCIe 4.0/3.0 x16 1x PCIe 4.0/3.0 x8 | 1x PCIe 4.0/3.0 x16 1x PCIe 4.0/3.0 x8 | 1x PCIe 4.0/3.0 x16 1x PCIe 4.0/3.0 x8 | 1x PCIe 4.0/3.0 x16 1x PCIe 4.0/3.0 x8 | 1x PCIe 4.0/3.0 x16 | 1x PCIe 4.0/3.0 x16 |
| Expansion Slots | 1x PCIe 4.0/3.0 x4 | 1x PCIe 4.0/3.0 x4 1x PCIe 4.0/3.0 x1 | 1x PCIe 4.0/3.0 x4 2x PCIe 4.0/3.0 x1 | 1x PCIe 4.0/3.0 x4 2x PCIe 4.0/3.0 x1 | 1x PCIe 4.0/3.0 x4 2x PCIe 4.0/3.0 x1 | N/A |
| M.2 | 3 (M.2 Heatsink *3) | 3 (M.2 Heatsink *3) | 3 (M.2 Heatsink *3) | 2( M.2 Heatsink *2) | 2 (M.2 Heatsink *1) | 2 (M.2 Heatsink *1) |
| LAN | AQUANTIA 10GbE + Intel Gigabit LAN | Realtek 2.5GbE + Intel Gigabit LAN | Realtek 2.5GbE + Intel Gigabit LAN | Intel Gigabit LAN | Intel Gigabit LAN | Intel Gigabit LAN |
| WIFI | Intel WIFI 6 802.11ax | Intel WIFI 6 802.11ax | Intel WIFI 6 802.11ax | Intel WIFI 6 802.11ax | N/A | Intel WIFI 6 802.11ax |
| Audio | ALC1220-VB & ESS SABRE 9218 DAC | ALC1220-VB & ESS SABRE 9218 DAC | AMP-UP Audio with ALC1220-VB | AMP-UP Audio with ALC1220-VB | AMP-UP Audio with ALC1200 | AMP-UP Audio with ALC1220-VB |
